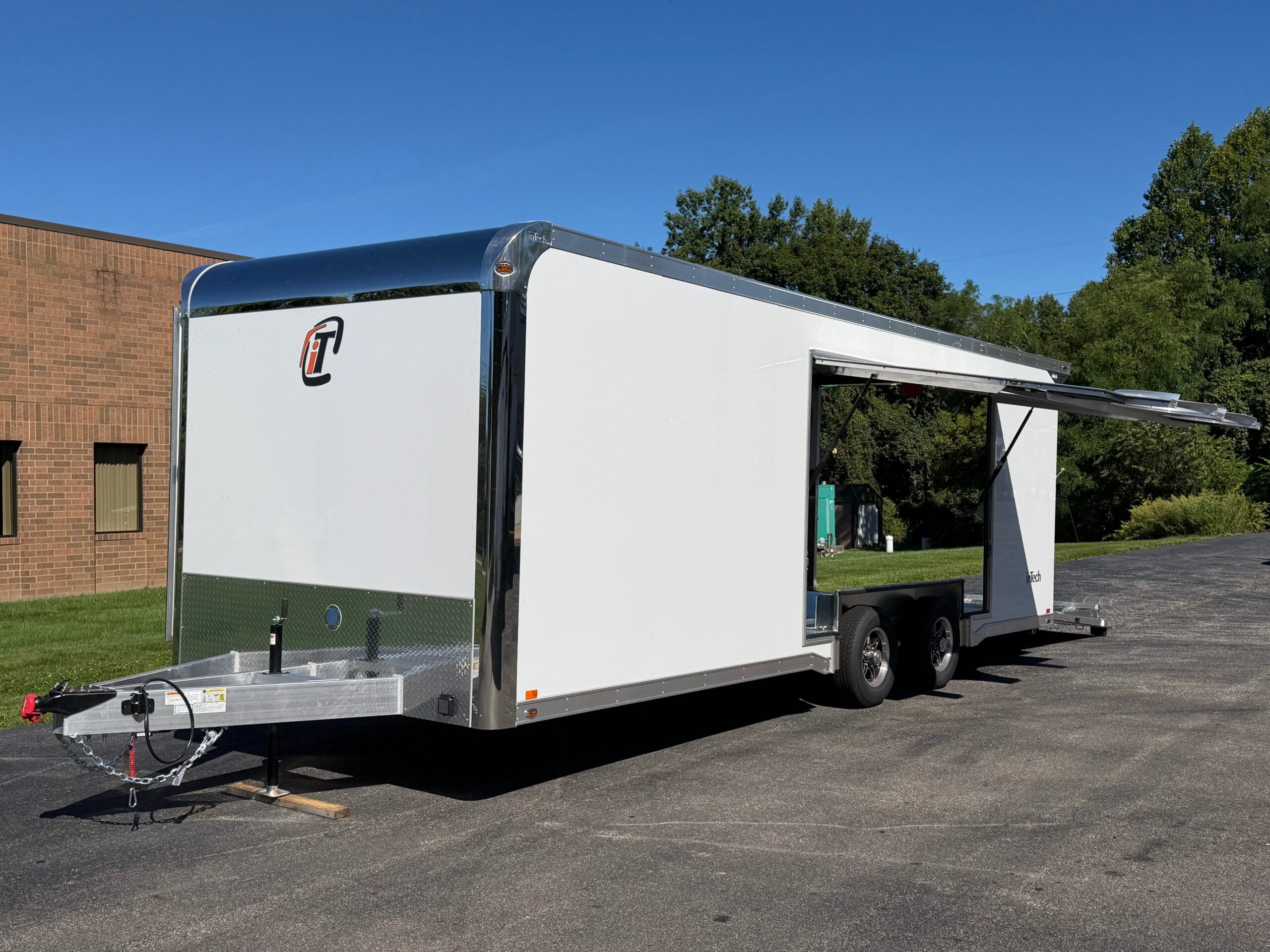

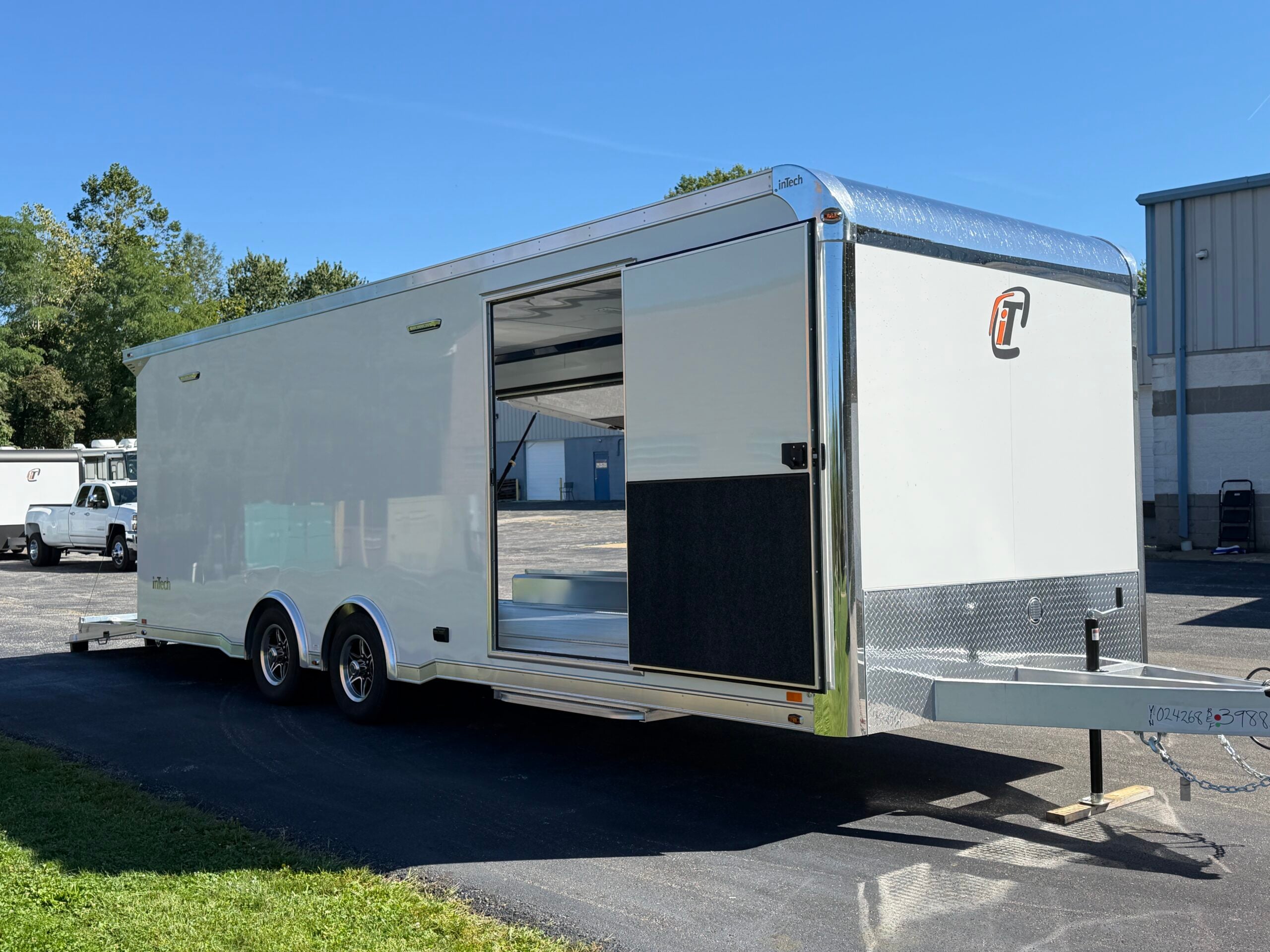

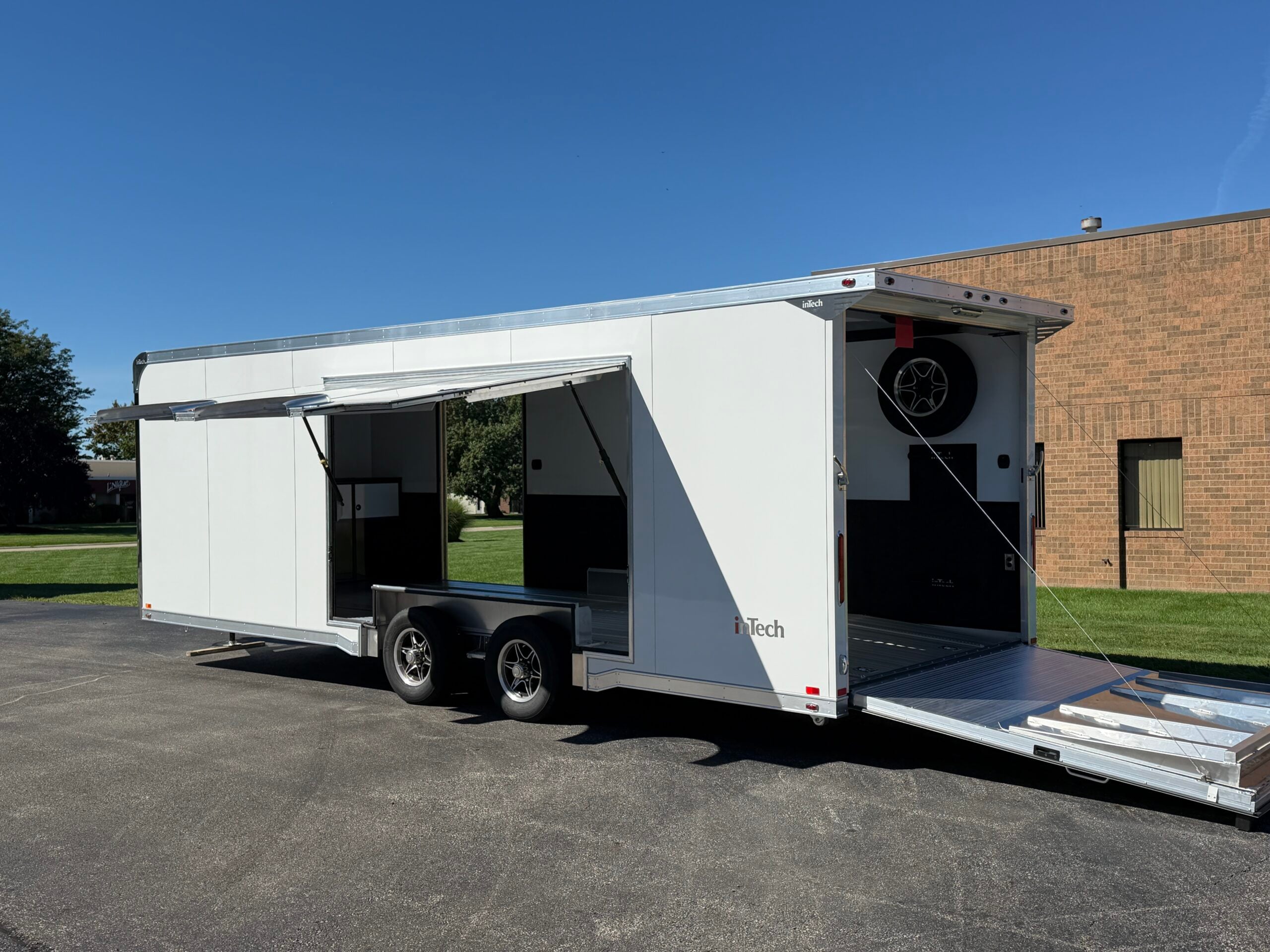

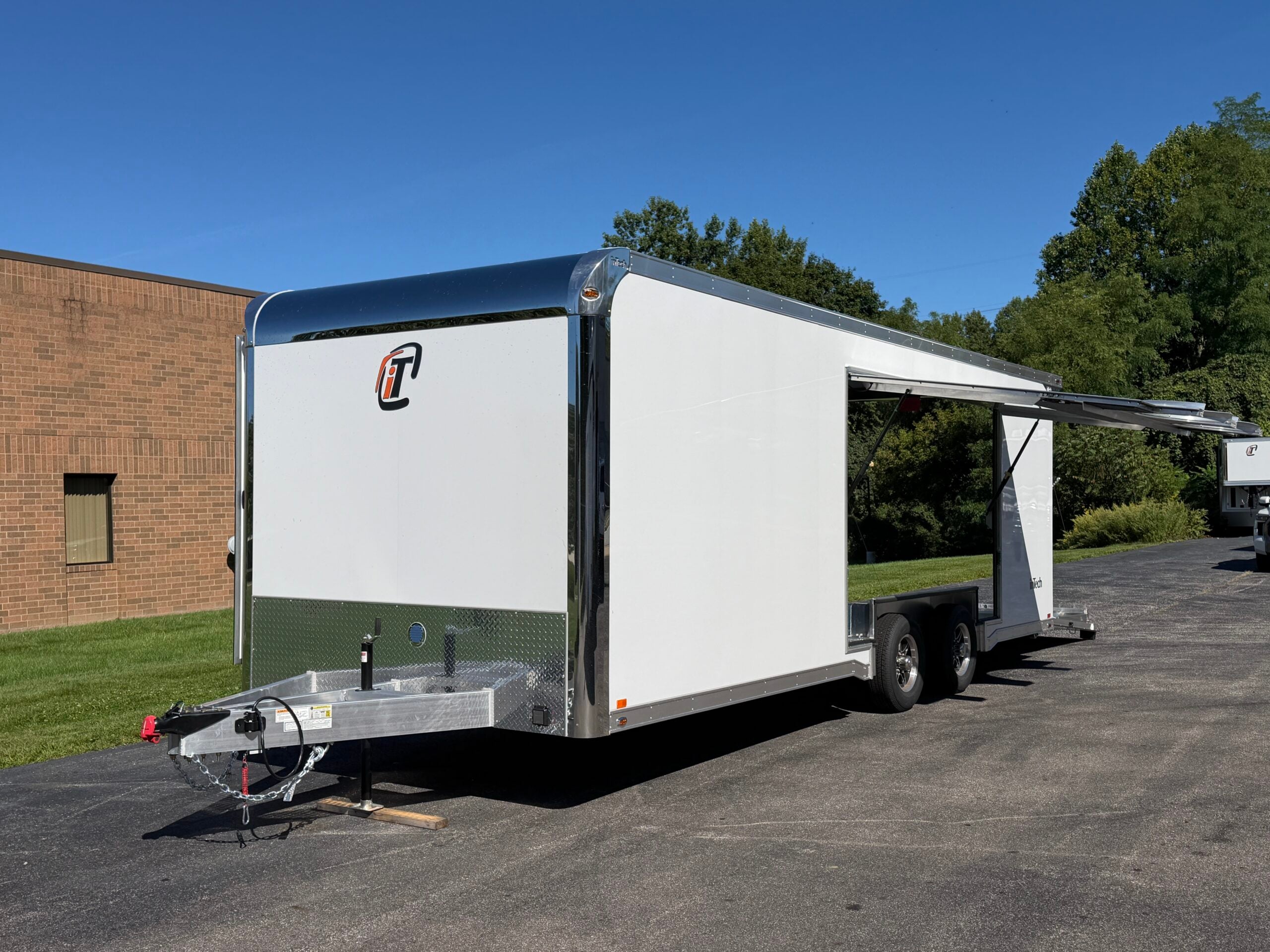

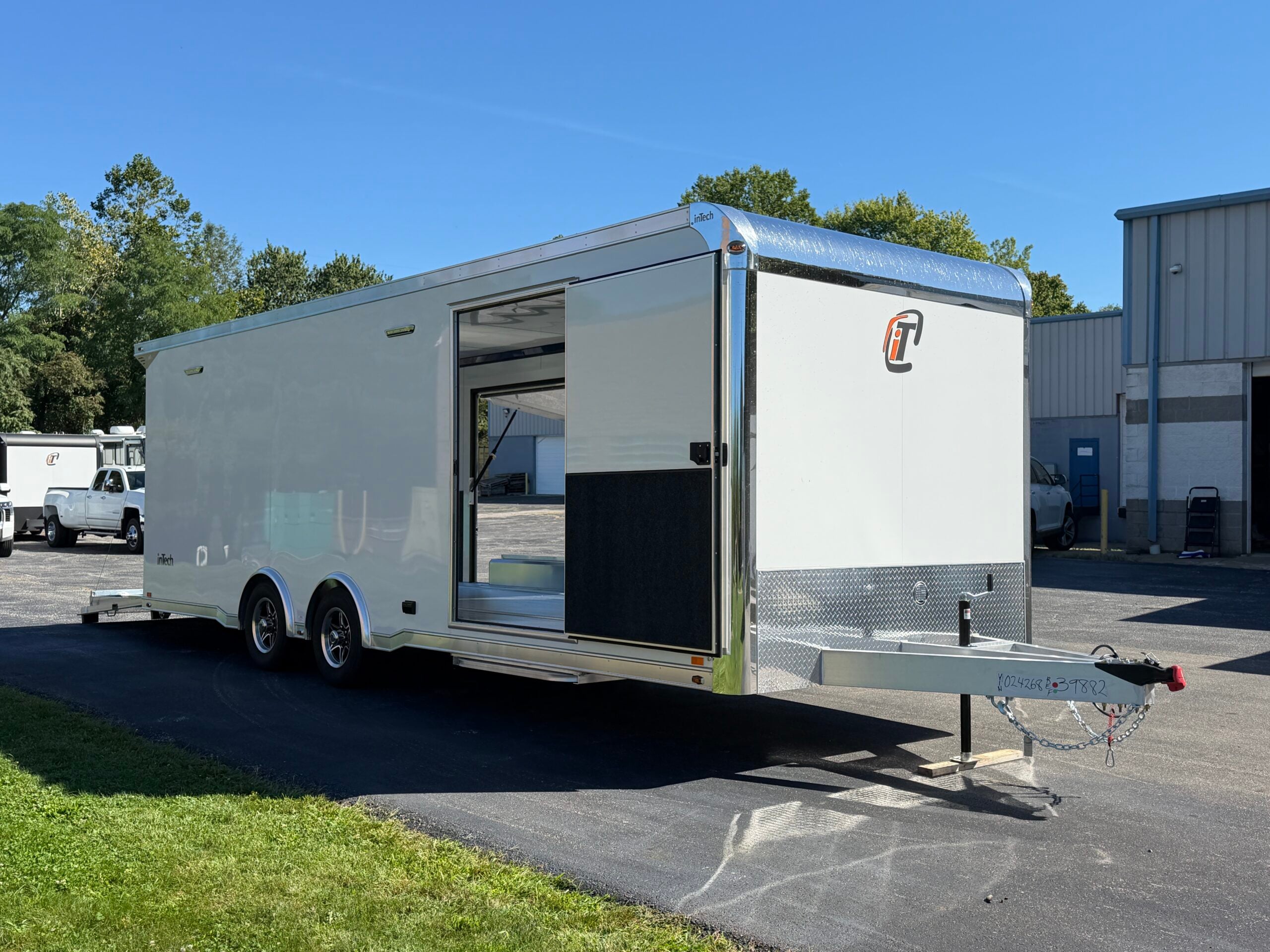

2027 inTech 24′ Lite Aluminum Car Hauler – Custom Cabinet Package & Full Access Escape Door

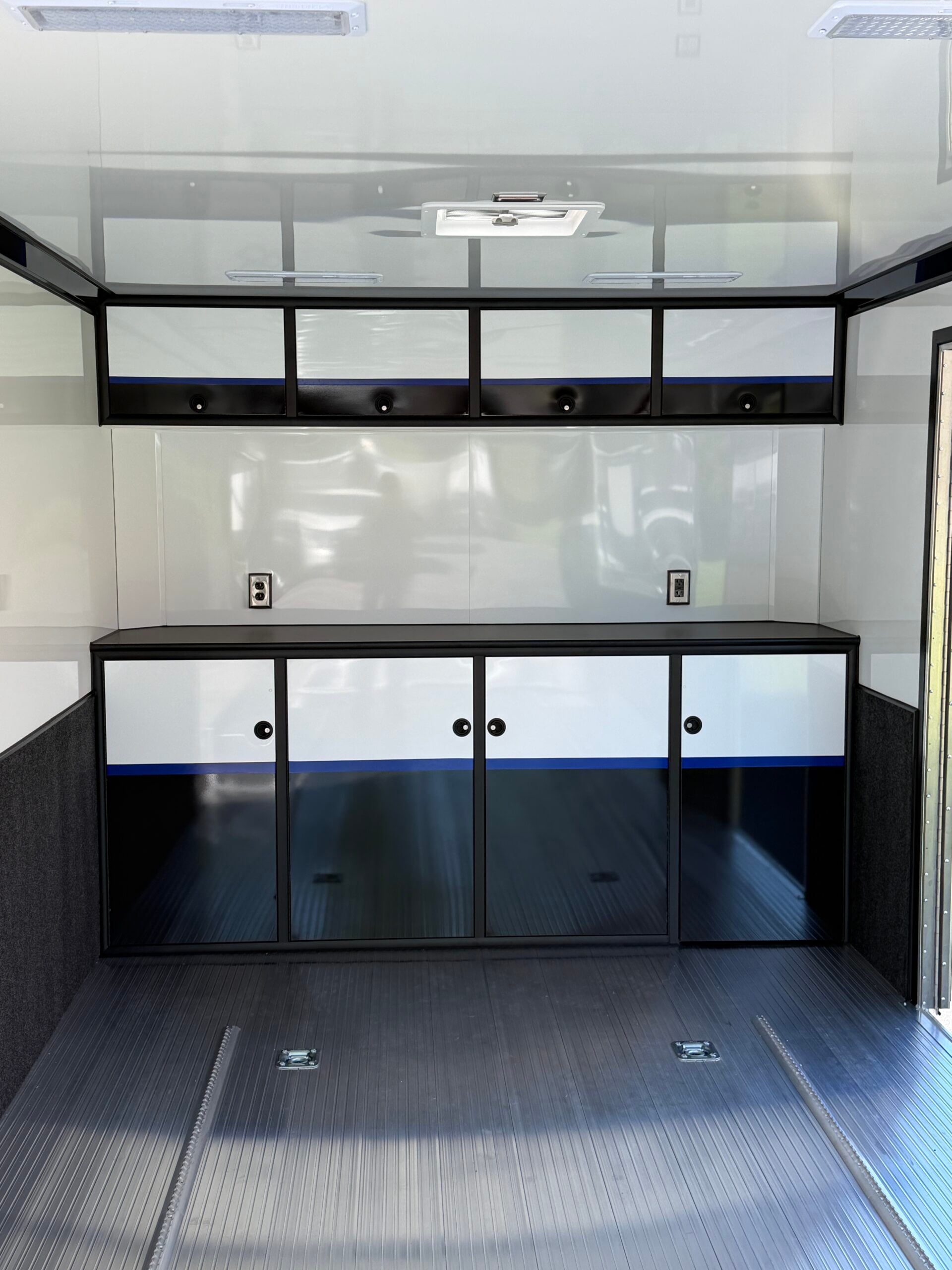

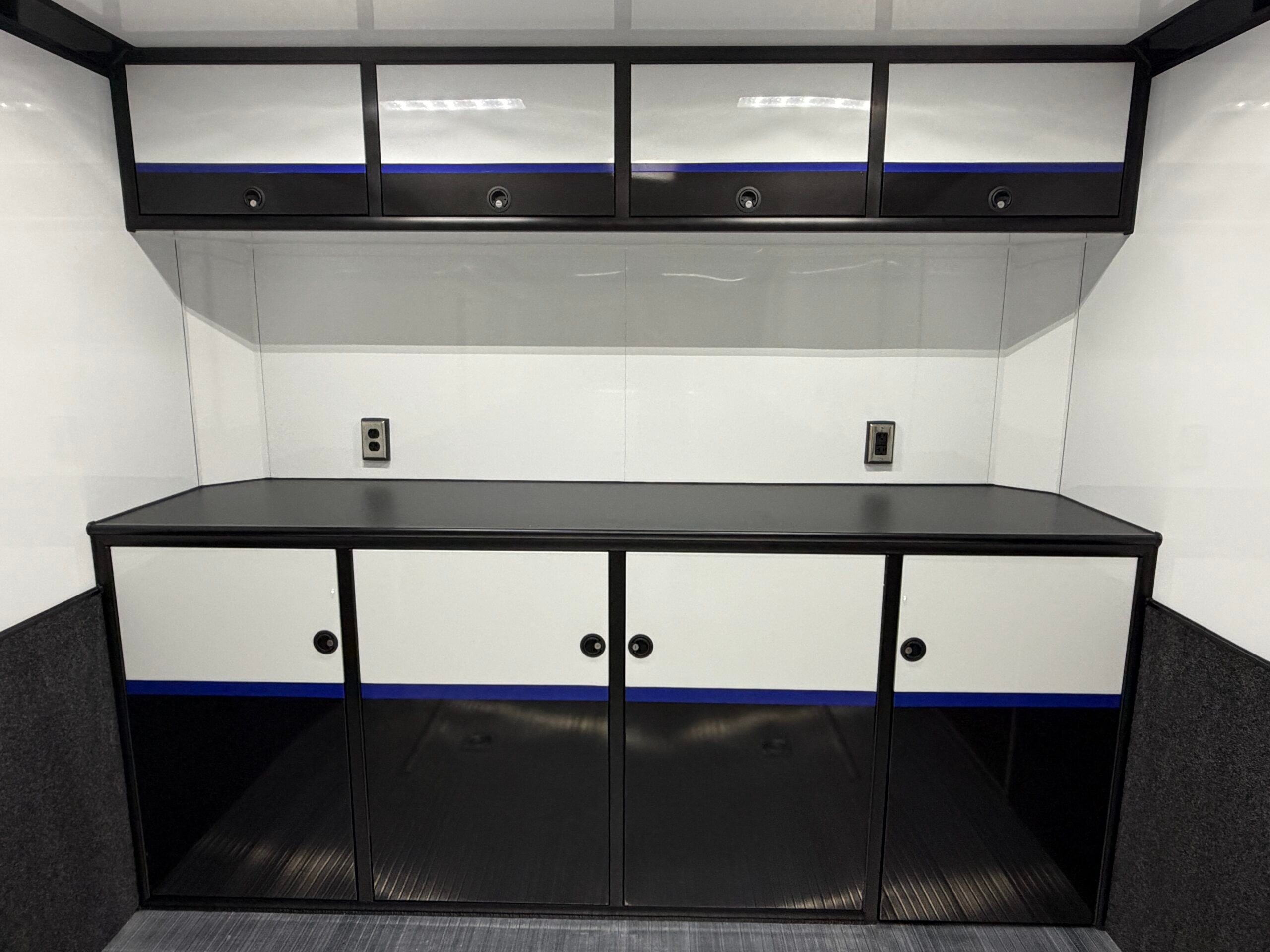

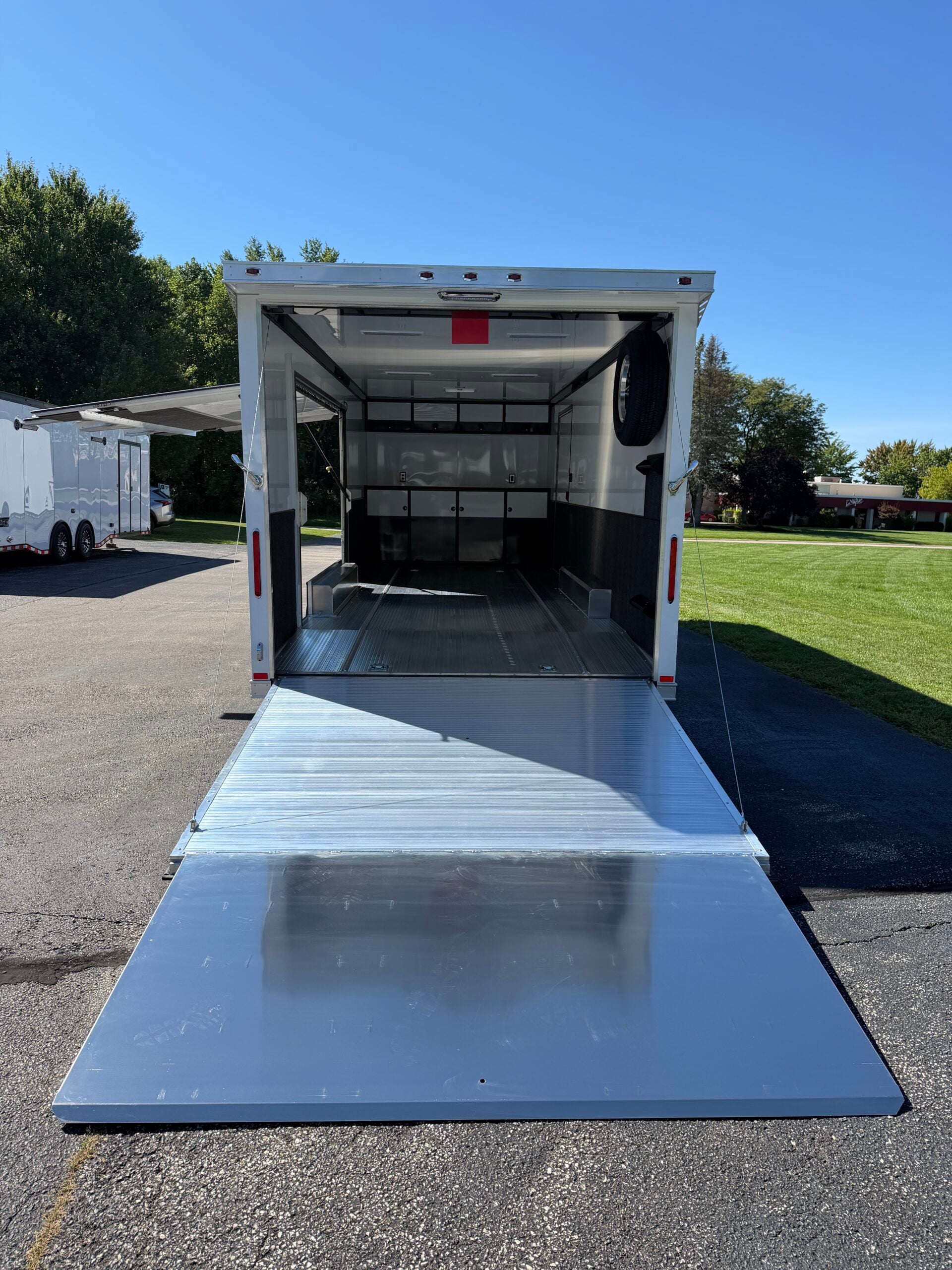

This 2027 inTech 24′ Lite Aluminum Car Hauler is anything but your typical Lite-series trailer. We specifically configured this trailer to combine the lightweight, all-aluminum construction of the inTech Lite with several of the features and finishes normally associated with a much more customized race trailer. The result is an extremely sharp, functional 24′ car hauler featuring a custom two-tone cabinet package, full-access escape door, 4′ full-width ramp extension, aluminum airline track, insulated interior, 30-amp electrical system and black anodized interior package. Built on inTech’s full-perimeter, all-tube aluminum frame, the trailer rides on dual 5,200 lb. Dexter torsion axles and features a 7′ interior height, extruded aluminum floor, screwless aluminum walls and ceiling, and inTech’s screwless/rivetless .040 aluminum exterior. CUSTOM TWO-TONE CABINET PACKAGE One of the standout features of this trailer is its custom-designed cabinet color configuration. Rather than going with a standard single-color cabinet package, we designed the upper and lower aluminum cabinetry with a two-tone white and gloss black finish separated by a blue accent stripe. The cabinet faces are complemented by black anodized framing, black hardware and a black HDPE countertop. The combination gives the trailer a clean, modern race-trailer appearance and makes this interior immediately stand apart from a standard Lite-series build. The trailer includes a full 8′ lower aluminum cabinet and 8′ upper aluminum cabinet package, providing plenty of storage and workspace without sacrificing valuable floor space. FULL-ACCESS ESCAPE DOOR Loading a car is one thing. Being able to get out of it once it’s inside the trailer is another. This trailer is equipped with inTech’s large 10′ x 6′ Full Access Escape Door, featuring a quick-remove interior wheel box and integrated wheel-well step. The oversized opening provides significantly better access to the driver’s side of the vehicle once loaded, making it an excellent setup for low-clearance race cars, performance cars and collector vehicles. The escape door also incorporates dual gas shocks and FMVSS locks. INTERIOR FEATURES 24′ interior length 8.5′ trailer width 7′ interior height Screwless aluminum walls & ceiling Extruded aluminum floor Extruded aluminum rear ramp One-piece aluminum transition flap 4′ interior beavertail Custom two-tone upper & lower cabinet package White & gloss black cabinet faces Blue cabinet accent stripe Black anodized cabinet framing & trim Black HDPE countertop 8′ lower aluminum cabinet 8′ upper aluminum cabinet with top-hinged doors & gas shocks Black anodized interior trim package 34″ high protective wall carpeting R4 insulated walls & ceiling (2) rows of surface-mounted aluminum airline track Airline track positioned 60″ on center Pair of 18″ wide tie-down strap hangers (4) 5,000 lb. recessed D-rings Aluminum spare tire with wall mount Winch plate prep for future winch installation (6) 12V 18″ LED interior lights Manual roof vent The upgraded airline track, carpeting, insulation, tie-down hangers and black anodized interior components are all part of the factory configuration. LOADING & VEHICLE ACCESS This trailer was configured with car hauling in mind. In addition to the oversized full-access escape door, the rear ramp has been upgraded with a 4′ long full-width ramp extension with 3″ bumpers. This helps reduce the approach angle when loading lower vehicles and provides a smoother transition into the trailer. Loading features include: Rear ramp door with gapless continuous hinge 4′ full-width ramp extension One-piece aluminum transition flap 4′ interior beavertail 10′ x 6′ full-access escape door Quick-remove interior wheel box Integrated wheel-well step Rear caster wheels Multiple floor tie-down options Winch-ready mounting plate 30-AMP ELECTRICAL PACKAGE The trailer is equipped with a complete electrical package that gives you plenty of capability at the track, show or garage: 30-amp load center 60-amp converter/charger 12V battery with vented battery box Battery disconnect switch 12V fuse panel 25′ shore power cord (4) 120V interior outlets Brace & wiring for future A/C installation (6) 12V LED interior lights (2) exterior 12V LED flood lights Rear LED flood light activated in reverse ALL-ALUMINUM CONSTRUCTION Like all inTech trailers, this Lite is built around aluminum construction rather than a conventional steel chassis. Chassis & Running Gear: Full-perimeter aluminum frame All-tube aluminum construction Triple-tube A-frame Extended tongue Dual 5,200 lb. Dexter torsion axles Electric brakes on both axles Spread axle design ST225/75R15 tires Aluminum wheels 2-5/16″ ball coupler Premium tongue package with safety chains Breakaway battery kit 7-way trailer plug 5,000 lb. manual tongue jack Tongue jack relocated rearward for additional clearance 16″ O/C floor crossmembers 16″ O/C wall studs 16″ O/C roof studs EXTERIOR FEATURES White .040 aluminum exterior Screwless/rivetless exterior construction One-piece aluminum roof Flat roof design 4″ upper & lower rub rail LED clearance lights LED slimline taillights Exterior LED flood lights 24″ ATP stoneguard 48″ 405 Series side entrance door Aluminum non-slip slide-out step RV flush-lock entrance door latch Wheel skirt inTech rear spoiler Polished cast aluminum corners Stainless steel high-polish front verticals & radius Rear ramp door with stainless steel paddle latches Rear caster wheels BUILT FOR MORE THAN JUST GETTING THE CAR THERE Whether you’re hauling a race car, Corvette, Mustang, Camaro, Porsche, collector car, show car or weekend track car, this 24′ inTech Lite provides an excellent combination of vehicle space, storage, accessibility and lightweight aluminum construction. What really separates this trailer from a typical 24′ Lite is the way it was configured. The custom two-tone cabinetry and black anodized interior package give it the appearance of a much more customized trailer, while the full-access escape door, ramp extension, airline track, insulation and electrical package provide the functionality you actually need when hauling a car. It’s a clean, purpose-built setup without stepping all the way up to the size, weight and cost of a full custom race trailer.   · Racing
