Listing details

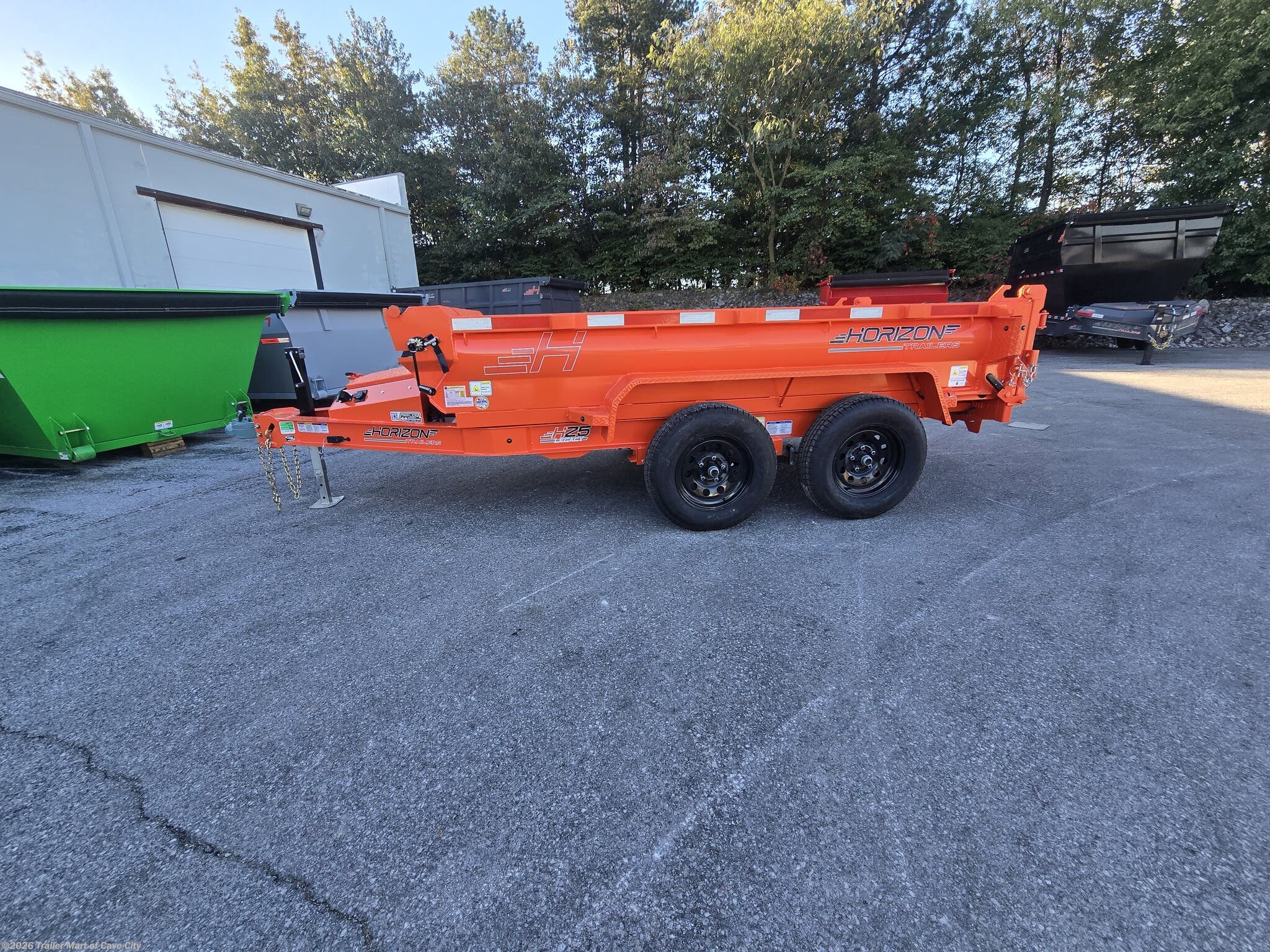

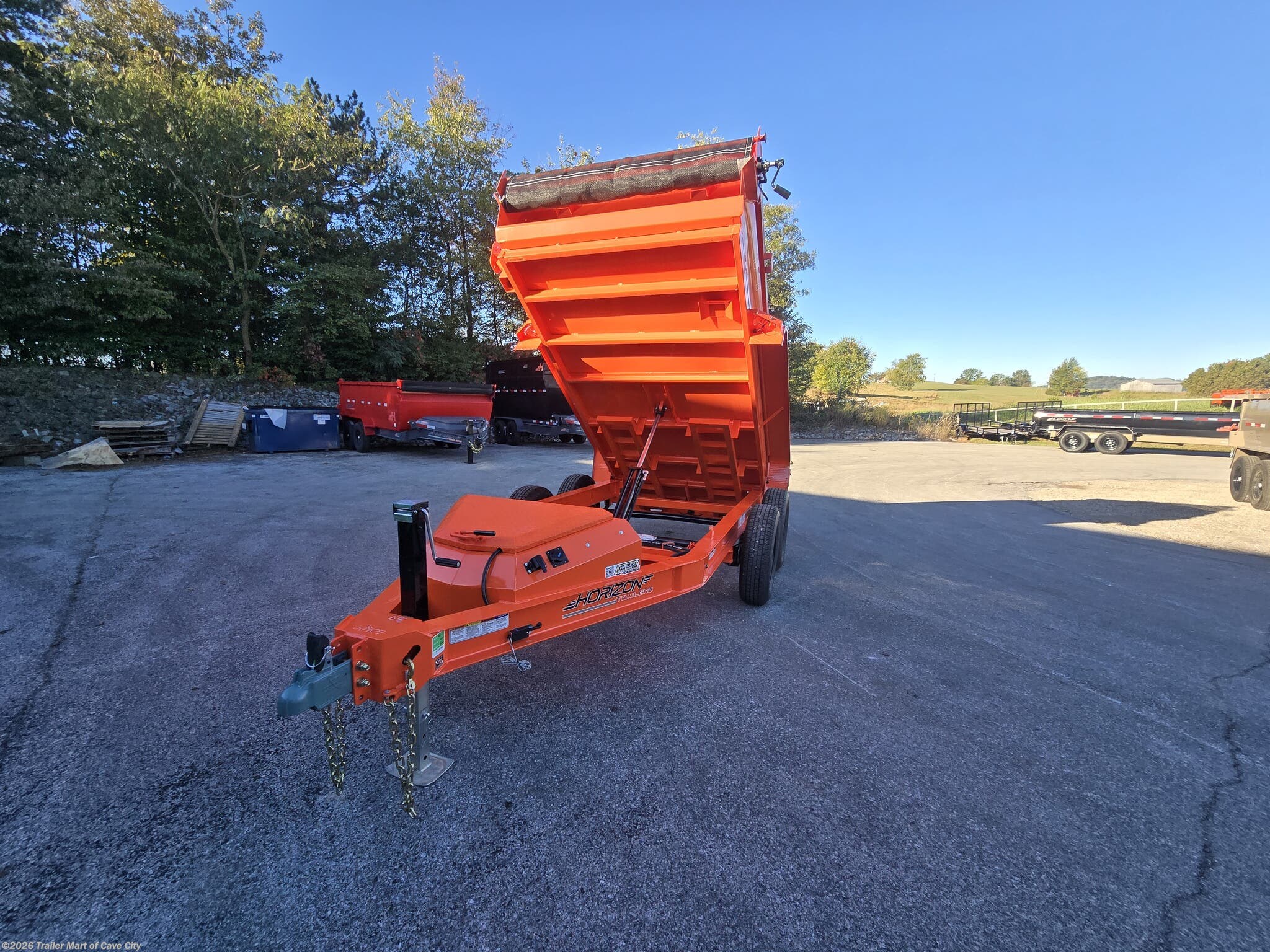

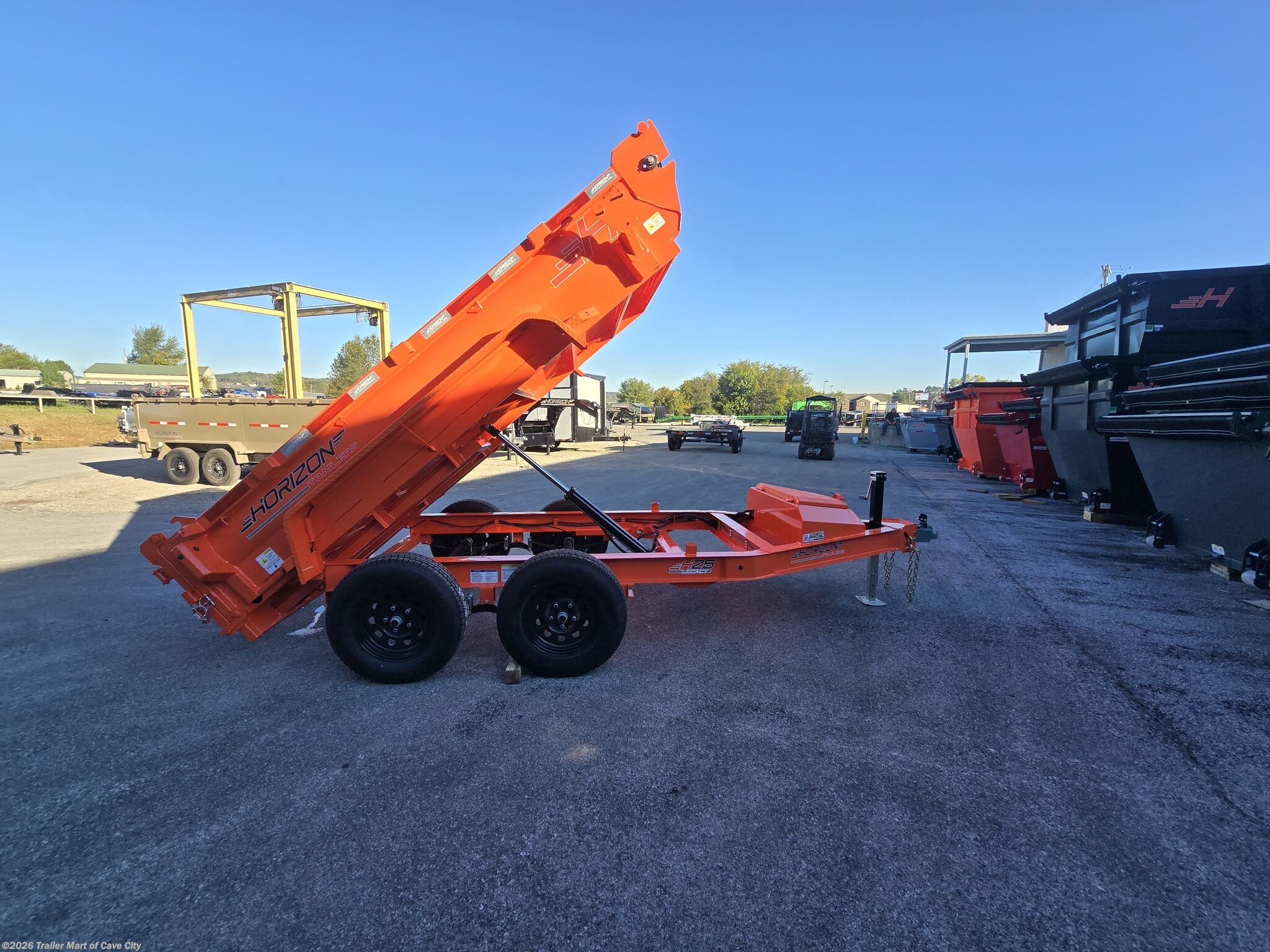

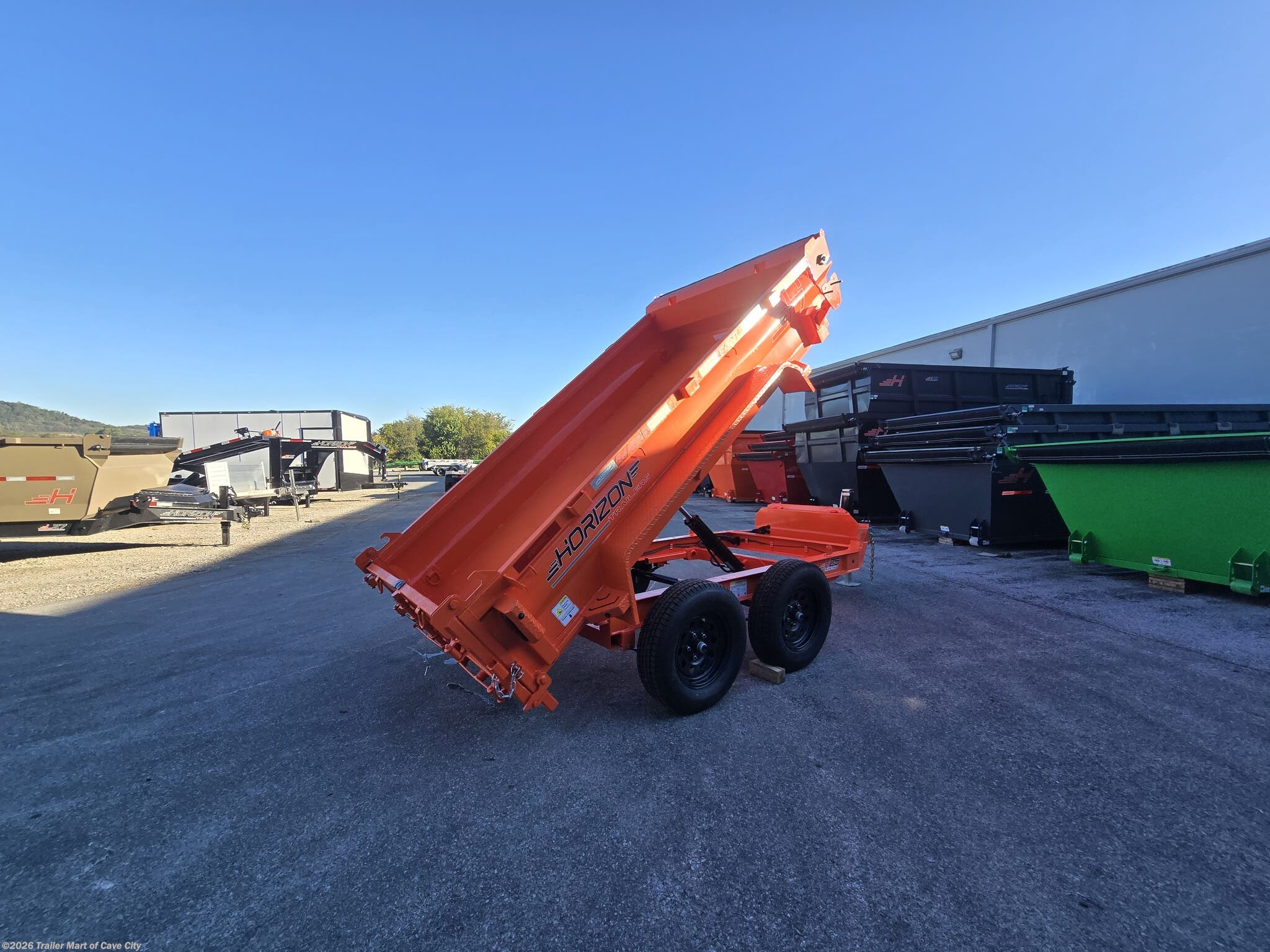

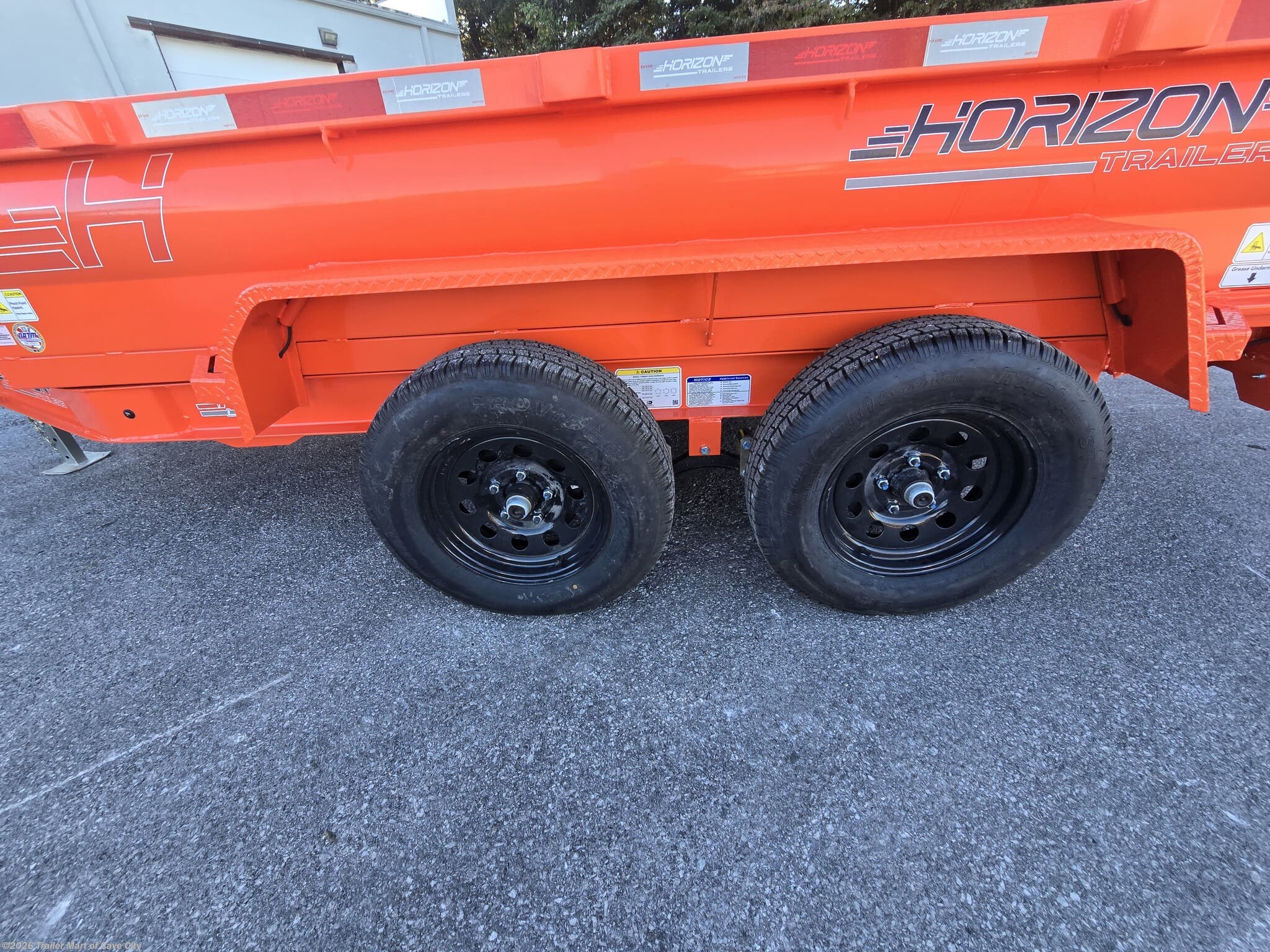

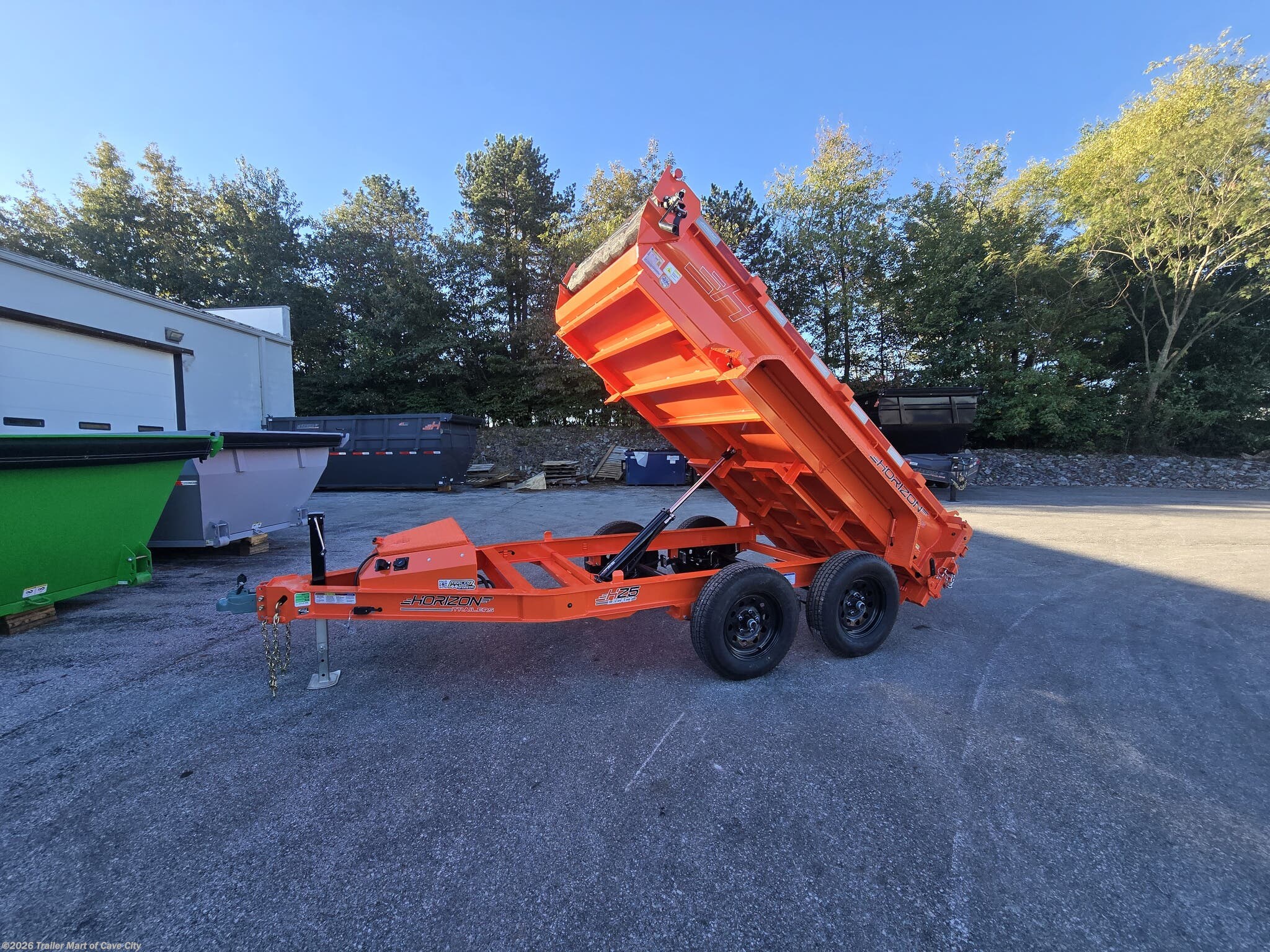

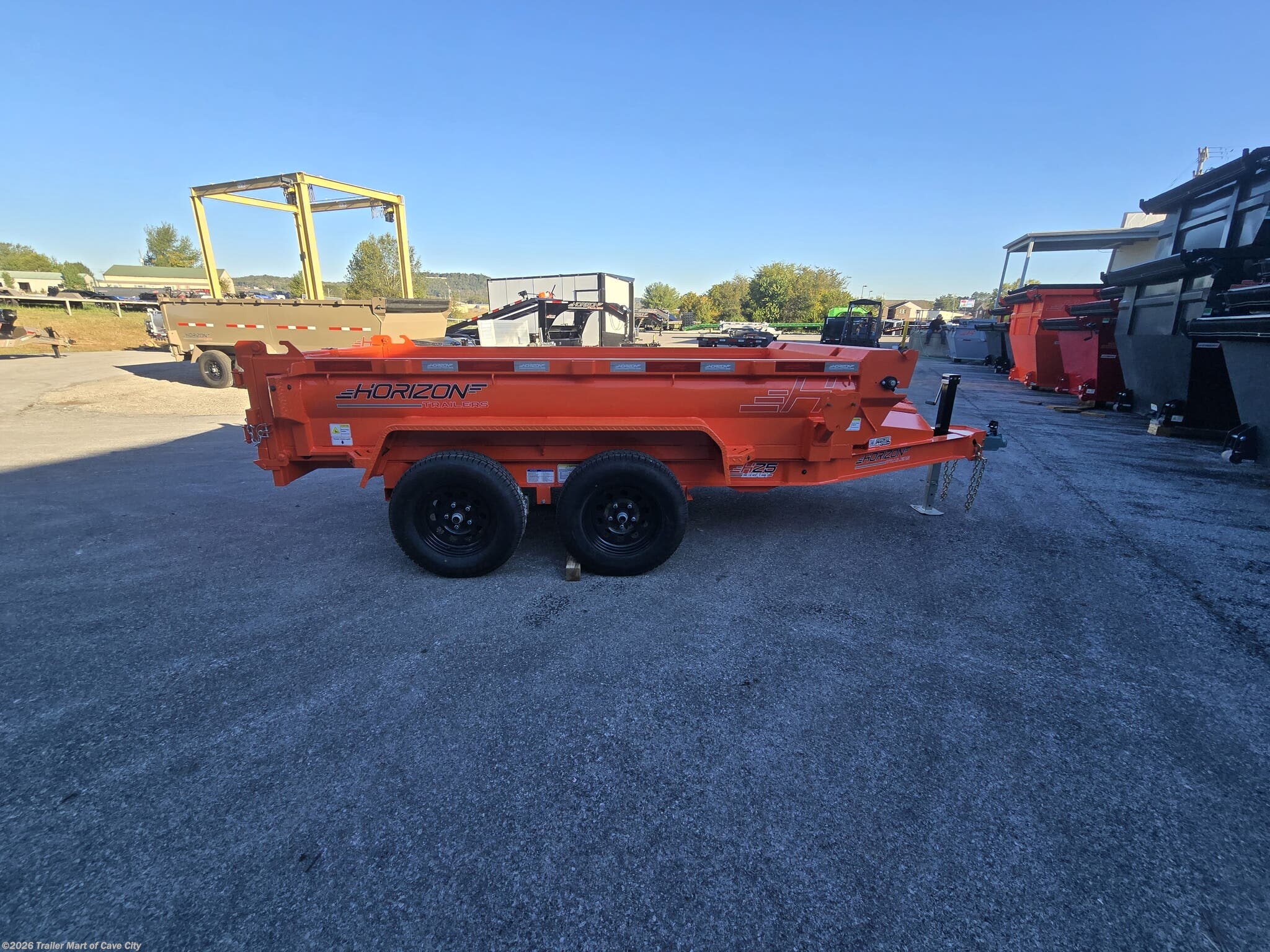

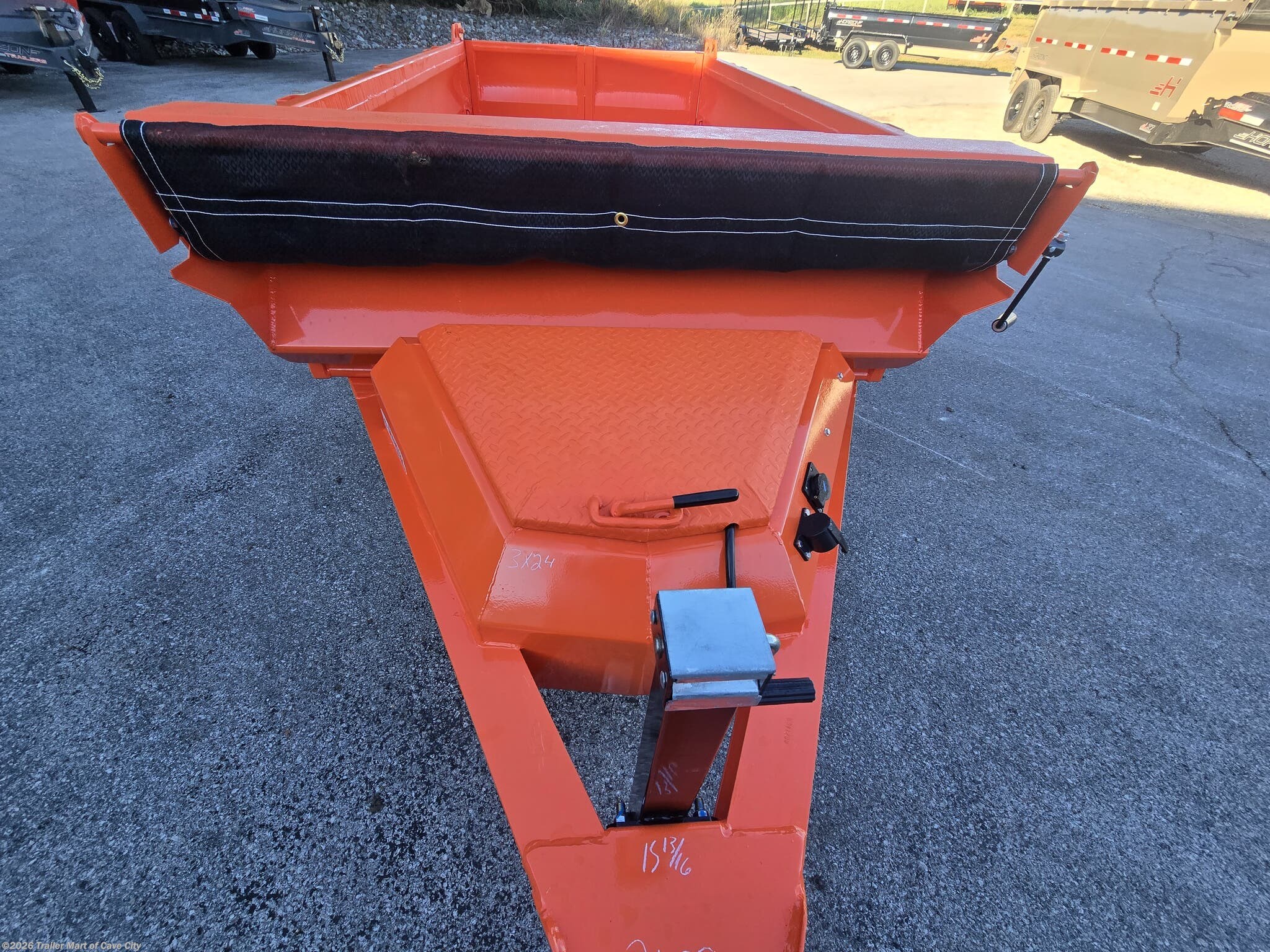

2027 Horizon Trailers HZ5BP 5'x10' 3.5k Dump Trailer

Brand: Horizon Trailers. Type: Dump Trailer. Length: 10' 0". Width: 5' 0". Height: 1' 6". GVWR: 7,600 lb. Hitch: Bumper Pull. Color: Orange. Stock number: 21409. Location: Cave City, KY. TRAILER SPECS LENGTH: 10' SIDE HEIGHT: 18" BED WIDTH: 60" BED HEIGHT: 24" FINISH PAINT TYPE: POWDERCOAT PREP: STEEL GRIT BLASTED WARRANTY AXLE WARRANTY: 5 YEAR SPRING AXLE WARRANTY TRAILER WARRANTY: THREE (3) YEAR FRAME/ONE (1) YEAR PARTS WARRANTY TONGUE TONGUE TYPE: 6" I-BEAM (8.5 LBS/FT) LENGTH: 50" COUPLER STANDARD COUPLER: ADJUSTABLE AUTO LATCH 2-5/16" BP COUPLER (17,000 LBS) JACKS FRONT JACK: 1 SIDE WIND DROP JACK LEG (7000 LBS) TOOLBOX TOOLBOX: LOCKABLE TOOLBOX BP (HOUSES BATTERY AND PUMP) SAFETY SYSTEM SAFETY CHAINS: 1/4" GRADE 70 SAFETY CHAIN W/CLEVIS HOOK (2 EACH) CHASSIS FRAME MAIN FRAME: 6" I-BEAM (8.5 LBS/FT) DUMP BED BED WIDTH: 60" BED HEIGHT: 24" FLOORING: 9GA. FLOOR FRAME: 1,1/2" X 3" X 11GA. TUBING CROSSMEMBERS: 3" CHANNEL (3.50 LBS/FT) 16" SPACING D-RINGS: 4 D RINGS WELDED INSIDE BOX DUMP ANGLE: 40° REAR GATE: 2-WAY DOOR SIDES HEIGHT: 18" TOP RAIL WIDTH: 60" THICKNESS: 12GA. TYPE: ROUNDED STEEL TOP RAIL: 2" X 3" X 11GA. TUBING STAKE POCKETS: 1,5/8" X 3,5/8" (ID) STAKE POCKETS HOOKS: 3/8" ROUND "J" HOOKS FENDERS: 14GA DIAMOND PLATE STEEL FENDERS RAMPS: SIDE MOUNTS W/ 5' LONG SLIDE IN 3" CHANNEL RAMPS CHANNEL RAMPS SPARE: WELD ON SPARE TIRE MOUNT SAFETY TARP: MANUAL TRAP KIT LIFT SYSTEM HYDRAULICS SYSTEM: HYDRAULIC - POWER UP / GRAVITY DOWN PUMP: KTI 12V HYDRAULIC PUMP CONTROLLER: 14' CONTROL CABLE DUMP LIFT LIFT CYLINDER: 3" X 24" SINGLE PUSH CYLINDER (7,000 LBS) RUNNING GEAR TIRES TYPE: RADIAL TIRES SIZE: ST205/75R15 PLY: 8 RATING: 2,150 LBS RIMS: 15" BLACK MOD WHEELS SUSPENSION AXLE TYPE: 3.5K ELECTRIC BRAKE AUTO ADJUST EZ LUBE SPRING AXLES BOLT PATTERN: 5 ON 5" AXLE COUNT: 2 SUSPENSION TYPE: SPRING AXLE WARRANTY: 5-YEAR SPRING AXLE WARRANTY ELECTRICAL AND LIGHTING BATTERY AND CHARGING BATTERY: 1 - INTERSTATE 27 DEEP CYCLE BATTERY CHARGING SYSTEM: 110V INTEGRATED TRICKLE CHARGER WIRING HARNESS: ALL-WEATHER WIRING HARNESS (7-WAY RV) FRAME WIRING: DOUBLE INSULATED WIRING HARNESS LIGHTING LIGHTS: DOT APPROVED TECNIQ LED LIGHTS SAFETY REFLECTIVE TAPE: 3M DOT COMPLIANT REFLECTIVE TAPE
